Creating Spring MVC HelloWorld Using Maven in Eclipse Tomcat

In the course of this tutorial, we will learn how to create your first Spring MVC application using eclipse IDE using Maven build type.

Prerequisites

Java version 1.7
Latest Spring STS
Apache Tomcat 7.0.x

This tutorial assumes that, you have downloaded and installed the above mentioned softwares on your computer. If you have not installed Java on your development machine, you can follow the official oracle documentation for the installation for your configuration.

Without spending any further time, let us jump straight into creating the project in eclipse.

Create a Maven Project

File -> New -> Other… It will open the eclipse select wizard.

Select Maven -> Maven Project and click Next.
Again click Next on New Maven Project dialog.

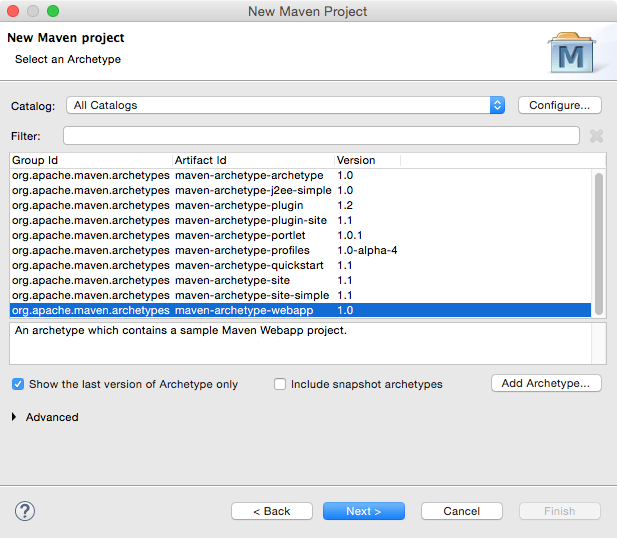

Select an Archetype either by filtering webapp or selecting from the available artifacts and click Next.

Provide the details for Group Id and Artifact Id and click Finish. As a general practice, the group id is your company domain name (i.e. com.javatechig) and artifact id is the name of your application.
This will create a basic Maven project template in eclipse.

Create a Server Instance

In this example we will be using Apache Tomcat application server for deploying our Spring MVC application. Now let us add a server instance on eclipse.

File -> New -> Other… It will open the eclipse select wizard.

Select Server -> Server and click Next.
Select Apache -> Tomcat v7.0 Server and click Next. In this example, we will be using Apache Tomcat version 7.0. However, the similar steps will work for other tomcat versions.

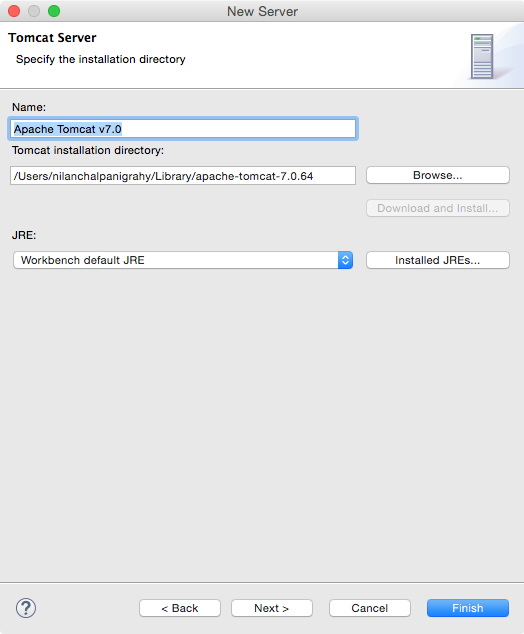

Browse and select the Apache Tomcat v7.0 server installation directory and click Finish.

4. Update Project Build Path

You might notice a error on your project. This is due to the project Build path problem. To fix this you need to right click on project -> Properties to open project Java Build Path settings.

Select Libraries tab and click on Add Library…-> Server Runtime -> Apache Tomcat -> Finish.

5. Configure Spring Dependency

Before we develop Spring MVC web application, we need to configure the project by adding the required Maven dependencies. Add the following Maven dependencies into your pom.xml file.

pom.xml

4.0.0com.javatechigHelloMVCwar0.0.1-SNAPSHOTHelloMVC Maven Webapphttp://maven.apache.org4.2.1.RELEASEorg.springframeworkspring-core${spring.version}org.springframeworkspring-webmvc${spring.version}org.springframeworkspring-web${spring.version}junitjunit3.8.1testHelloMVC

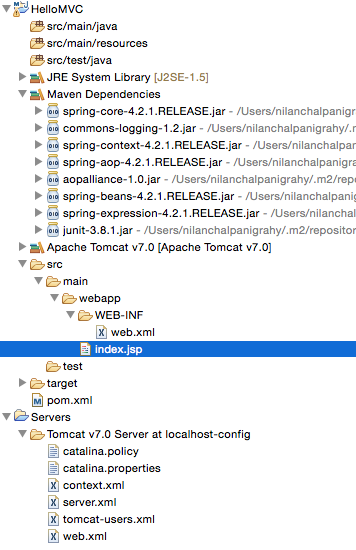

With this the basic Spring project configuration is complete. Your project structure should look like as the following screenshot.

The following steps will take you through the rest of the steps to create and deploy Spring MVC HelloWorld app.

6. Configure Dispatcher Servlet

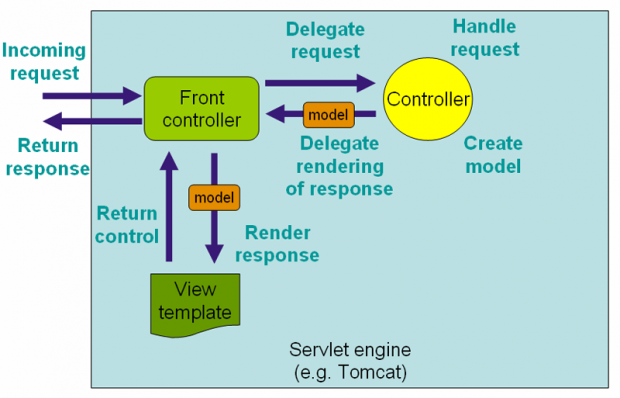

The DispatcherServlet must be configured as normal in web.xml to bootstrap a Spring WebApplicationContext. Edit the default web.xml file and add the following.

web.xml

Archetype Created Web ApplicationcontextConfigLocation/WEB-INF/dispatcher-servlet.xml
            org.springframework.web.context.ContextLoaderListener
        dispatcher
            org.springframework.web.servlet.DispatcherServlet
        1dispatcher/

7. Mapping Requests

Create an xml file dispatcher-servlet.xml under the same directory of web.xml.

dispatcher-servlet.xml

/WEB-INF/views/.jsp

In the above xml file, base-package specifies the package of the controllers. prefix specifies the directory of views, and it is set to be /WEB-INF/views/, which means views directory should be created under WEB-INF. suffix specifies the file extension of views. For example, given a view hello, the view will be located as /WEB-INF/views/hello.jsp.

8. Create Controller class

Create the HelloWorldController under src/main/java/ directory.

HelloWorldController.java

package com.javatechig.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class HelloWorldController {

    @RequestMapping("/hello")
    public ModelAndView welcomeMessage(
            @RequestParam(value = "name", required = false) String name) {
        // Name of your jsp file as parameter
        ModelAndView view = new ModelAndView("hello");
        view.addObject("name", name);
        return view;
    }
}

In the code above, @RequestMapping annotation maps web requests onto specific handler classes and/or handler methods, in this case, welcomeMessage(). It provides a consistent style between Servlet environments, with the semantics adapting to the concrete environment.

RequestParam indicates that a method parameter should be bound to a web request parameter. In this case, we also make it not required and give it a default value. The ModelAndView(“hello”) determines that hello is the target view.

9. Working with Views

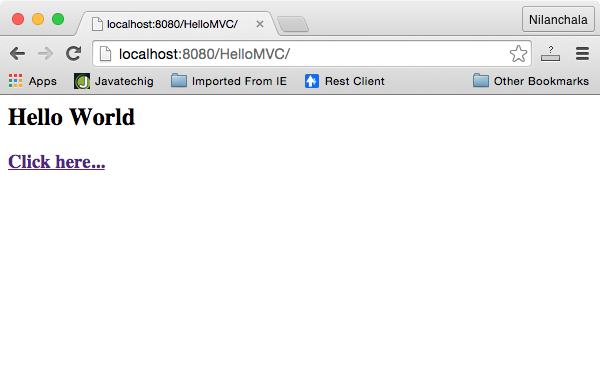

Edit the default index.jsp and add the following code snippets.

index.jsp

Hello World
Click here...

Add a JSP files hello.jsp file under /WEB-INF/views/ directory.

hello.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="ISO-8859-1"%>





Spring 4 MVC
<%@ page isELIgnored="false"%>


    Hello, ${name}. Welcome to Spring MVC!

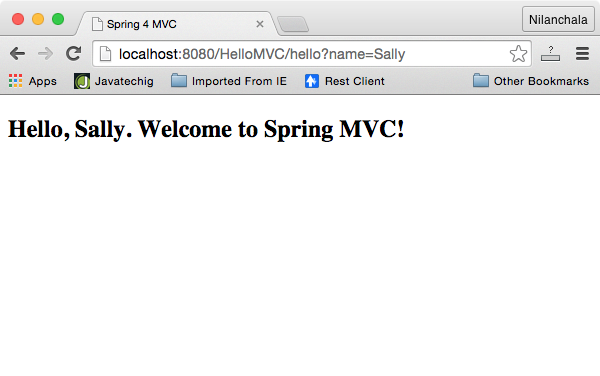

Now we are done with our first HelloWorld example. To deploy it on Tomcat application server, Right click on the project -> select Run as. Choose Tomcat server, select Next and Finish. It will deploy the project and to see the output visit http://localhost:8080/HelloMVC on your browser. you will see the following output on your browser.
