Android LinearLayout Example

nilan avtar

Written by

Nilanchala,  6 min read,  2.95K views, updated on Sept. 17, 2023

The LinearLayout is the most basic layout manager provided by Android. The LinearLayout organizes the child views either horizontally or vertically based on the specified orientation property. The value for orientation property can be either horizontal or vertical.

Here is how the LinearLayout declaration looks like in Android layout

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
       android:orientation="horizontal"
       android:layout_width="fill_parent"
       android:layout_height="wrap_content">

<!-- add children here-->

</LinearLayout>

Notice that in the above code snippets, we have specified orientation as horizontal, this aligns all its child layout/views horizontally.

All of the layout managers can be nested. This means that you can put a RelativeLayout or FrameLayout as a child to LinearLayout.

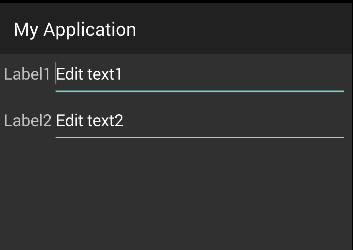

For example, if you want to create a layout as shown in the picture below, you need to construct a vertical layout manager that contained horizontal layout managers, where each row owns its own horizontal layout.

LinearLayout Example

Example

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:padding="5dp">

        <TextView
            android:id="@+id/textView"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Label1"
            android:textAppearance="?android:attr/textAppearanceMedium" />

        <EditText
            android:id="@+id/editText"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Edit text1" />

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:padding="5dp">

        <TextView
            android:id="@+id/textView1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Label2"
            android:textAppearance="?android:attr/textAppearanceMedium" />

        <EditText
            android:id="@+id/editText1"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Edit text2" />

    </LinearLayout>

</LinearLayout>

Understanding Weight

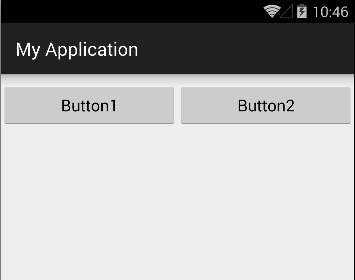

The weight property is used to assign a size importance of child views in a container. For example, if you want to place two buttons distributed horizontally by occupying each half of the screen width, you can define layout_weight as 0.5 for each of the buttons inside LinearLayout. Following screenshot depicts the views distributed
equally using weight property.

LinearLayout Weight Property
Example

Following code snippets implements the same as shown in the above image.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_marginTop="10dp"
    android:orientation="horizontal">

    <Button
        android:id="@+id/button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_weight="0.5"
        android:text="Button1" />

    <Button
        android:id="@+id/button2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_weight="0.5"
        android:text="Button2" />

</LinearLayout>

Key Points

  • If a LinearLayout is set to vertical orientation and contains a number of views than the screen space, it will not be scrollable by default. You have to explicitly put the LinearLayout inside a ScrollView.
  • you must be careful about over-using the LinearLayout. If your application design demands the nesting of multiple LinearLayouts, you may want to consider using a RelativeLayout instead.
