Android CardView Example

nilan avtar

Written by

Nilanchala,  6 min read,  3.39K views, updated on Dec. 04, 2023

The recent release of Android support library (v7:21.0.+) has introduced two new user interface widget: RecyclerView and CardView that helps in building rich Android apps.

The RecyclerView is more advanced and flexible and efficient version of ListView. RecyclerView ViewGroup is a container for larger data set of views that can be recycled and scrolled very efficiently.

RecyclerView can be used for larger datasets to be rendered on the UI like a list. RecyclerView provides maximum flexibility to design a different kind of views.

Click here to read more about Android RecyclerView example.

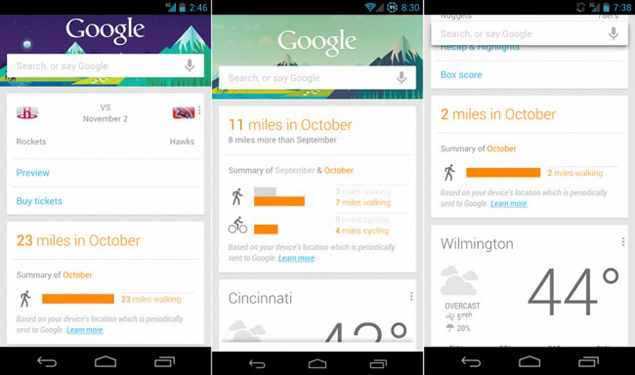

In the other hand the CardView widget, is an extension of existing FrameLayout class. This helps to wrap other UI elements as Google style cards. CardView widgets can have shadows and rounded corners. The following image shows example Google card design used Google Now application.
Google Now Cards

Add CardView Support Library

Android SDK doesn’t includes the CardView class, and hence for using CardView in your project you need to add the following dependency in your build.graddle file.

dependencies {
   compile 'com.android.support:cardview-v7:21.0.+'
}

Declare CardView Layout

Now that we have added the build dependencies to project, let us go ahead to declare the CardView layout. In this example, we will add an ImageView and two TextViews as shown in the following screenshot.

<android.support.v7.widget.CardView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/card_view"
    android:layout_width="match_parent"
    android:layout_height="380dp"
    android:layout_margin="8dp">

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <ImageView
            android:id="@+id/thumbnail"
            android:layout_width="match_parent"
            android:layout_height="250dp"
            android:layout_alignParentTop="true"
            android:scaleType="centerCrop"
            android:src="@drawable/wallpaper" />

        <TextView
            android:id="@+id/title"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/thumbnail"
            android:maxLines="3"
            android:padding="8dp"
            android:text="@string/title"
            android:textColor="#222"
            android:textStyle="bold"
            android:textSize="22dp" />

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/title"
            android:maxLines="3"
            android:padding="8dp"
            android:text="@string/description"
            android:textColor="#666"
            android:textSize="14dp" />

    </RelativeLayout>
</android.support.v7.widget.CardView>

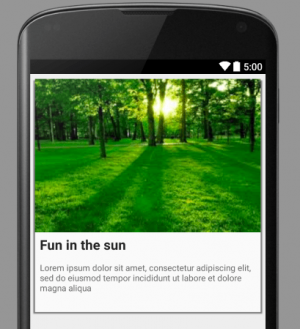

The output of the above code is as follows
Android CardVeiw Example

Customize CardView Appearance

The CardView layout declaration is pretty straight forward. CardView widget allows you to control the background color, shadow, corner radius etc.

For using the custom attributes in XML, you need to add the following namespace declaration to your layout parent.

<android.support.v7.widget.CardView
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    xmlns:cardView="http://schemas.android.com/apk/res-auto"
	... >

		...
		....
</android.support.v7.widget.CardView>

Now let us use the following CardView properties to customize the appearance of the CardView

  • To set the corner radius in your layouts, use the cardView:cardCornerRadius attribute. To set the corner radius in your code, use the cardView.setRadius method.
  • To set the background color of a card, use the cardView:cardBackgroundColor attribute.
